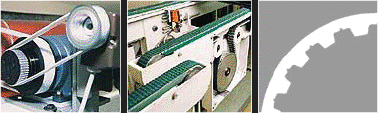

High-efficiency timing belts
|
As form-fit power transmission and conveying elements RUMAN Proposition timing belts round off the family of tried and tested RUMAN conveyor and processing belts. Our extensive experience in the field of light materials handling is our guarantee for excellent product quality and practice-oriented service. |
|
Diverse product range |
| |
The Proposition product range includes all common timing belt pitches for standard conveying and handling operations |
|
Variants |
| |
The combining of basic types with different coating materials, surface patterns and cam shapes means that our timing belts can be used for a wide variety of applications.
|
|
Delivery times |
| |
All standard types can be supplied at short notice ex stock |
|
Service |
| |
We don't just provide the timing belt. We also offer sound expert advice at the design stage and can supply standard equipment at short notice on request. |
|
Quality and price |
| |
RUMAN quality at sensible prices means maximum price effectiveness for you. Have us draw up an offer! |
|
Finishing |
| |
RUMAN Proposition timing belts are available open or welded endless. The belt widths available have been selected to match standard toothed pulley widths. |
Types with available widths and thickness: |
|
T5 |
| |
Widths: 10 - 50 mm |
| |
Thickness: 2.5 mm |
|
T10 |
| |
Widths: 16 - 100 mm |
| |
Thickness: 4.5 mm |
|
T20 |
| |
Widths: 25 - 100 mm |
| |
Thickness: 8.0 mm |
|
AT 5
|
| |
Widths: 10 - 50 mm
|
| |
Thickness: 2.7 mm |
|
AT 10
|
| |
Widths: 25 - 100 mm |
| |
Thickness: 4.5 mm |
|
AT20
|
| |
Widths: 25 - 100 mm |
| |
Thickness: 8.0 mm |
|
L
|
| |
Widths: 12.7 - 101.6 mm (0.5 - 4.0 inch) |
| |
Thickness: 3.6 mm |
|
H
|
| |
Widths: 12.7 - 101.6 mm (0.5 - 4.0 inch) |
| |
Thickness: 4.3 mm |
|
HTD 8 M
|
| |
Widths: 20 - 85 m
|
| |
Thickness: 5.6 mm |
|
HTD 14 M
|
| |
Widths: 40 - 115 mm
|
| |
Thickness: 10.0 mm |
|
